BTSGeo

Complete/integrated portable solution for instantaneous meter-level target geolocation and air interface network control.

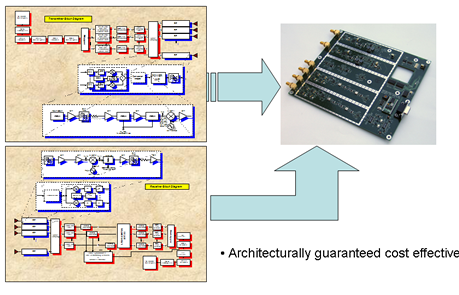

Beyond Software Radio...

High Precision Mobile Station Positioning...

- Please contact us regarding this feature

Key Features:

- Proprietary and custom radio frequency and signal processing architecture
- Phenomenal radio sensitivity which result in enhanced coverage
- Effective and rapid low level interaction with hardware, unachievable with off-the-shelf solutions
- Software-defined architecture
- Open architecture for straightforward integration with SIGINT platforms
- High volume mobile station registration capability
- Customized RF level interactions with cellular phones for high reliability control
- High performance in a wide variety of RF propagation environments, from rural to urban scenarios
- Equalization capability: optimum diversity maximum likelihood sequence with soft-output
- Amplitude Accuracy: -100dBm to -25 dBm (+/- 1dB)
- Noise Figure: 5.0 dB
- Input 3rd Order Intercept at max gain: -10.0 dBm
- Gain control response time: < 1 microsecond
- Frequency Accuracy: 0.06 ppm
- Antenna emissions conducted: -50 dBm
- Channel spacing/bandwidth: 200 kHz
- Channel capability: FCCH, SCH, BCCH, CCCH, SDCCH/4, SACCH/C4 - SDCCH/8, SACCH/C8 – TCH
- Compact, high capacity, scaleable design

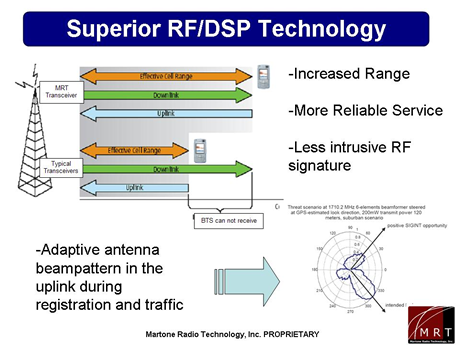

Superior RF/DSP Technology...

Sale and export of this product is subject to U.S. regulations. Export Licenses are approved on a case-by-case basis and sale of any of these products is dependent on approval of the United States Government.
